Heavy-duty rotary actuators are available as pneumatic or hydraulic Scotch yoke actuators for 90-degree angular valves, dampers, or any related devices. The BG series comes with a complete set of modular accessories, including side-mounted handwheels, jackscrews with hydraulic overrides, filters/regulators/gauges, limit switches, solenoid valves, and positioners, etc. Heavy-duty rotary actuators are utilized across various industries, such as chemicals, refining, pipelines, pharmaceuticals, water processing, offshore operations, and more.

BG Pneumatic Scotch Yoke Actuator Features

1. Modular design facilitates on-site configuration, maintenance, and inventory management.

2. The safety design ensures safe operation with a fully enclosed spring module.

3. The machining accuracy is guaranteed, as the housing is processed and formed in a single pass by a CNC machining center.

4. Excellent surface corrosion resistance is achieved through hard chrome plating on the cylinder and piston rod, enhancing corrosion resistance and service life.

5. Efficient and durable, the design features low friction and self-lubricating components for dynamic transmission and sealing.

6. The rated torque output range spans from 100Nm to over 500,000Nm.

7. Wide temperature range coverage includes ultra-low temperature (-60°C), low temperature (-40°C), standard type (-20°C), and high temperature (+150°C).

8. Optional manual operating devices are available, including screw, bevel gear, and hydraulic options (side-mounted handwheel, bevel gear manual override, and hydraulic manual override).

Advantages

• Factory: We have been in the actuator industry for over 19 years, since our establishment in 2006 by Mr. Zhang.

• Experience: We possess more than 14 years of experience in participating in both foreign and domestic projects.

• Customization: As an actuator manufacturer, we offer OEM and ODM services to cater to your specific needs.

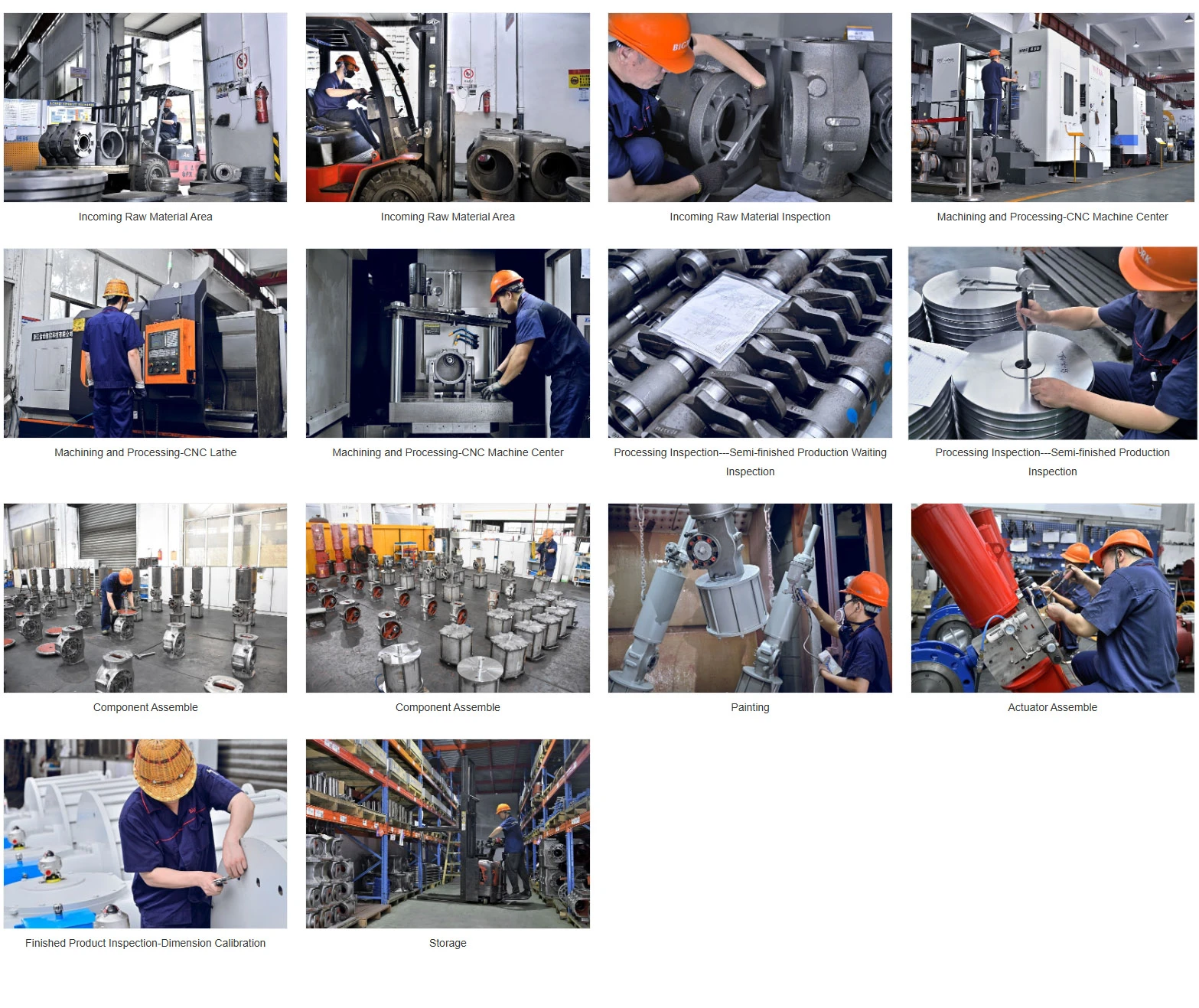

• Facilities: Our company utilizes the latest advanced equipment to produce top-quality products.

• High Quality: We maintain our own testing progress chart and rigorously test all our products in the workshop.

• Certifications: We have obtained comprehensive certifications such as ISO, CE, ATEX (BV audited), SIL3 (TÜV audited), IP68 (TÜV audited), EAC, -60°C ambient and cryogenic type tests (TÜV audited), and salt spray tests, among others.

• Service: We provide prompt and friendly service with professional knowledge and technical support during our pre-sale, sales, and after-sale periods.

• Applications: As a framework supplier for China National Petroleum Corporation (CNPC) and China National Offshore Oil Corporation (CNOOC), we strive to ensure the best quality guarantee for every client. For more overseas and domestic application cases, please feel free to contact us.
